WP52E LED Wall Pack 120V-277V(110W) - Caster Lighting

WP52E LED Wall Pack 120V-277V(110W)

SKU: WP52E Category:

WP52E LED Wall Pack 120V-277V(110W)



       ◆   Die-cast aluminum housing for durability and heat dissipation.

       ◆   Impact and tempered glass lens is precisely designed for optimal light                       distribution and efficiency.

       ◆   Long lifespan of 50,000 hours at 40°C.



  • INFORMATION

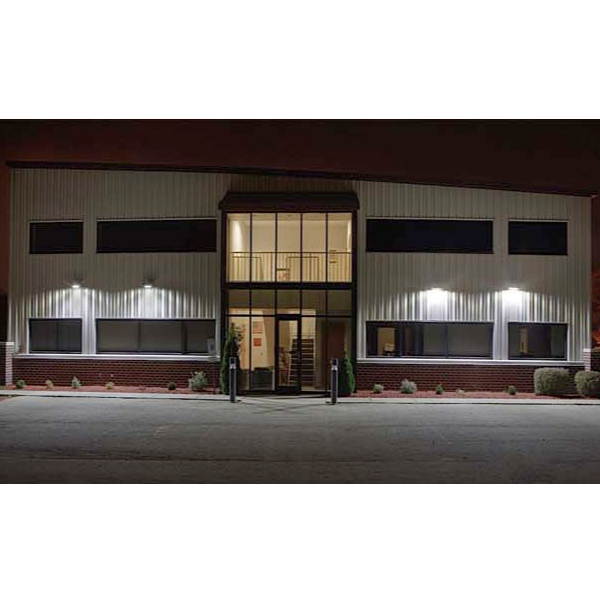

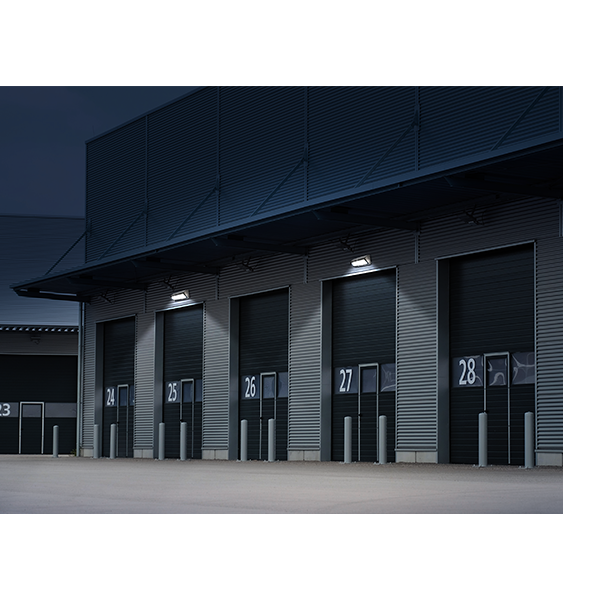

    The Economical Wall Pack WP52E provides traditional architectural style with °Cellent performance energy efficient illumination. Listed as cost-effective product back up it have superior quality and make it more attractive choice for contractors when select lighting products for their job. It is ideal for pathway illumination, building entrances, vehicle ramps, schools, tunnels, stairways and loading docks.

  • SPECIFICATION

    ITEM WATTAGE     Wattage (Selectable)        CCT (Selectable) Lumens Efficacy   (lm/W)    Surge Protection   Control   Input Voltage CRI THD Operating     Temp. Mounting
    WP52E 69W N/A 3K/4K/5K (N) 10760 156 4KV Photocontrol (Optional) 120-277V >70 <20% -40~40°C WALL
    WP52E 110W N/A 3K/4K/5K (N) 17055 155 4KV Photocontrol (Optional) 120-277V >70 <20% -40~40°C WALL
    WP52E 169W N/A 3K/4K/5K (N) 26497 156 4KV Photocontrol (Optional) 120-277V >70 <20% -40~40°C WALL

    Application
    ● Commercial Areas        ● Entrances & Doorways     ● Parking Lots & Garages
    ● Industrial Facilities      ● Security Lighting                   ● Pathways & Perimeters

  • DOWNLOADS

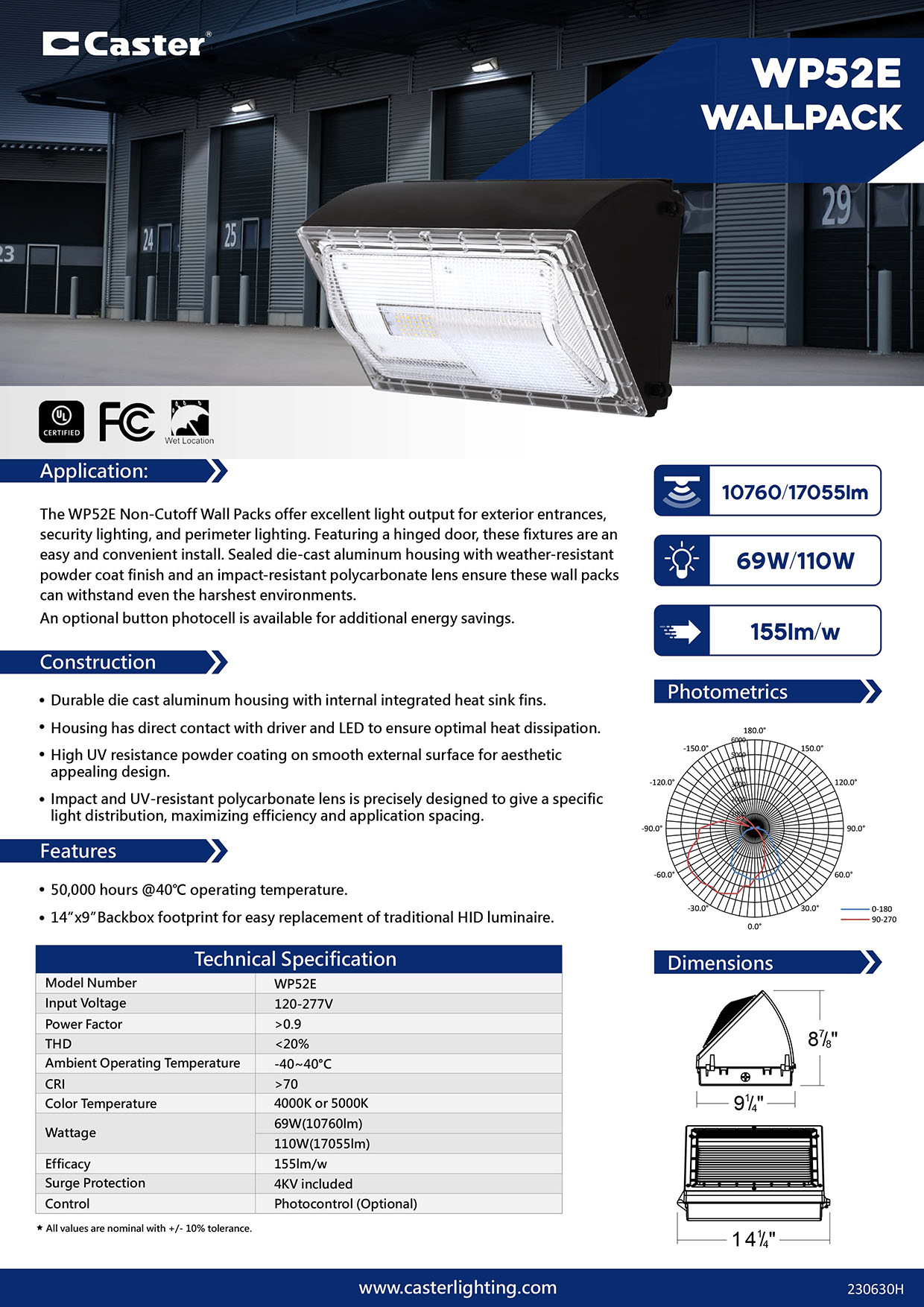

    WP52E-Spec Sheet

--> -->
