WP26 LED Wall Pack 120V-277V(143W)
WP26 LED Wall Pack 120V-277V(143W)
◆ Die-cast aluminum housing for durability and heat dissipation.
◆ Polycarbonate lens provide forward throw light distribution.
◆ Long lifespan of 50,000 hours at 40°C.
-
INFORMATION
This Full cut off wall pack is ideal for commerical wall mounted application where traditional metal halide luminaries are typically used. With choice of two light levels and type III light distribtion for wider coverage, this WP26 is ideal for outdoor application such as building perimeters, driverways and where control of spill light is important.
-
SPECIFICATION
ITEM WATTAGE Wattage (Selectable) CCT (Selectable) Lumens Efficacy (lm/W) Surge Protection Photocell Input Voltage CRI THD Operating Temp. Mounting WP26 107W N/A 3K/4K/5K (N) 14949 139 4KV Built in, Optional 120-277V >70 <20% -40~40°C WALL WP26 143W N/A 3K/4K/5K (N) 20858 145 4KV Built in, Optional 120-277V >70 <20% -40~40°C WALL Application

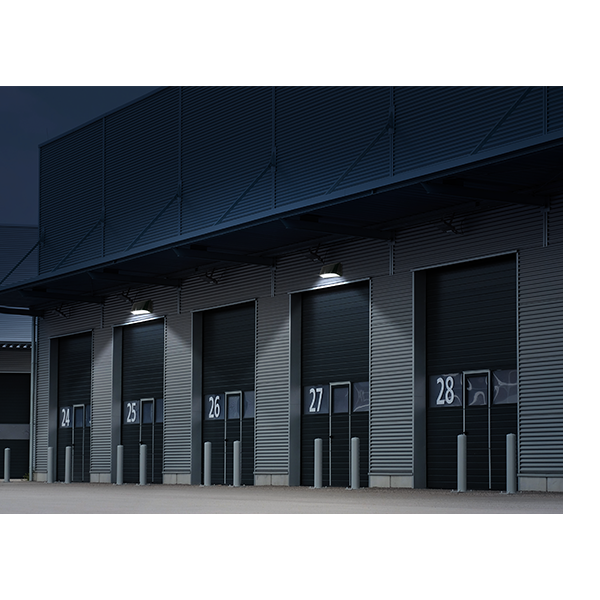

● Commercial Areas ● Entrances & Doorways ● Parking Lots & Garages
● Industrial Facilities ● Security Lighting ● Pathways & Perimeters
-
