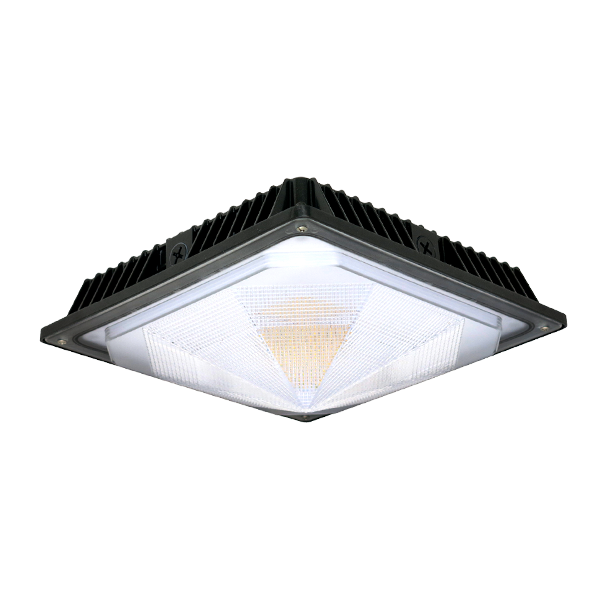

CM17 LED Canopy Light 120V-277V(108W) - Caster Lighting

CM17 LED Canopy Light 120V-277V(108W)

SKU: CM17 Category:

CM17 LED Canopy Light 120V-277V(108W)



       ◆   Die-cast aluminum housing for durability and heat dissipation.

       ◆   Multiple installation options (conduit/ pendant/ junction box).

       ◆   Motion seneor (optional).

       ◆   Long lifespan of 50,000 hours at 40°C.



  • INFORMATION

    The LED Canopy ,DLC - CM17 Series canopy provide 2 package lumen output and high lumen/watt efficiency. This robust design luminarie come with high-temperature arcylic lens to reduce yellowing and directs light to desiered location.  This Canopy is ideal for vehicle servicve and fueling station as retrofit or new construction installaiton.

  • SPECIFICATION

    ITEM WATTAGE    Wattage     (Selectable)       CCT (Selectable) Lumens Efficacy   (lm/W)    Surge Protection   Input Voltage CRI THD Operating      Temp. Power Factor          Mounting
     CM17 108W 50%,75%,100% 3K/4K/5K (N) 15227 141 4KV 120-277V >70 <20%  -40~40°C >0.9 Ceiling/Pendant/Conduit

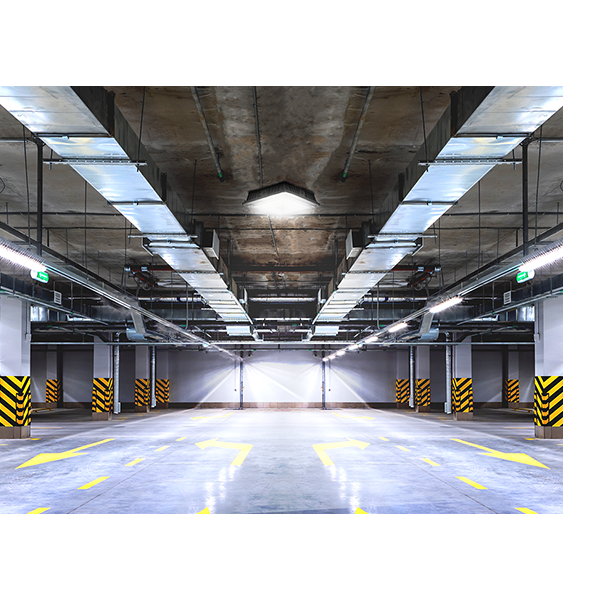

    Application
    ● Parking Garages      ● Warehouses        ● Work Shop
    ● Garages                        ● Storefronts           ● Vestibules

  • DOWNLOADS

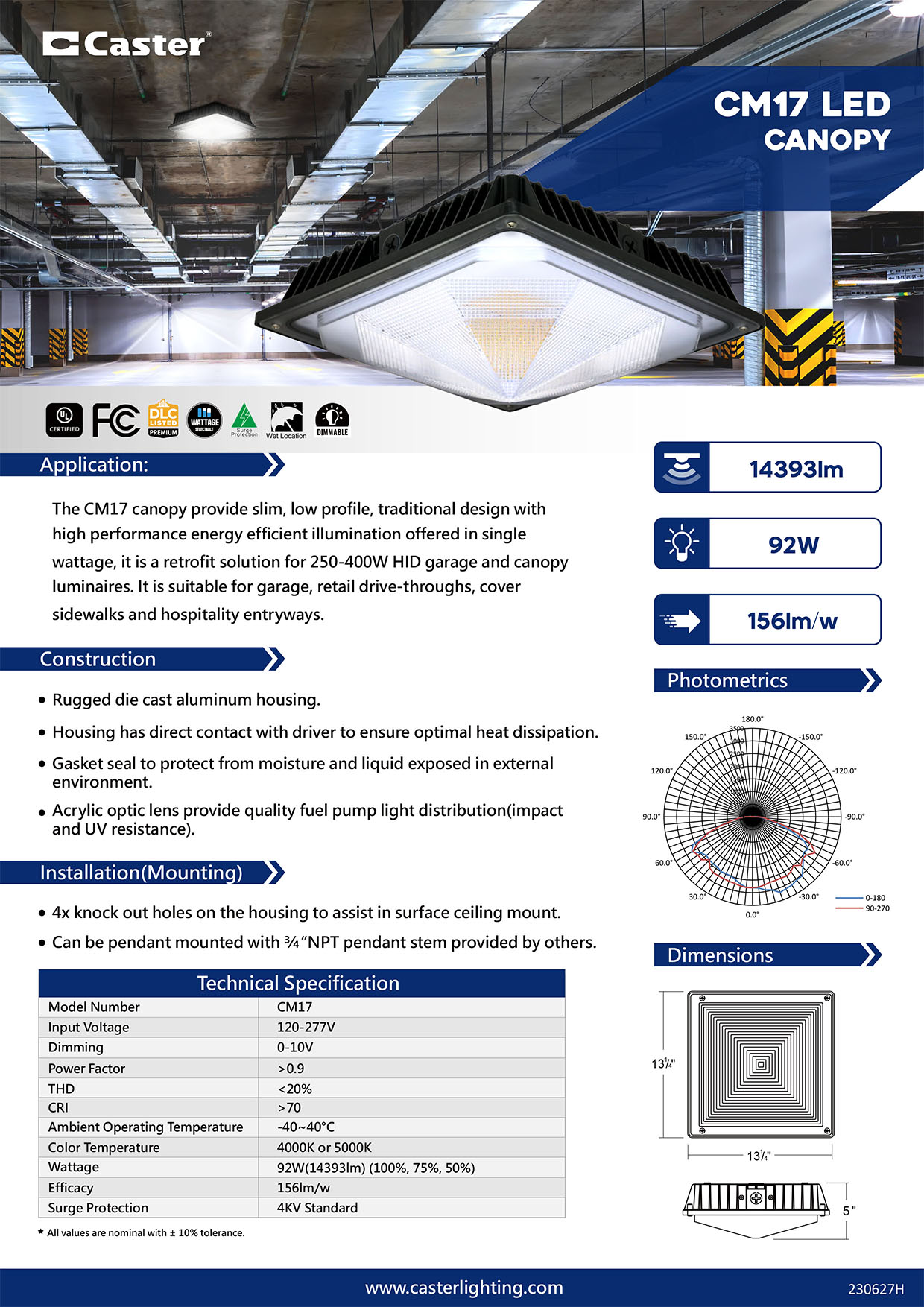

    CM17-Spec Sheet

--> -->
