CM10 LED Canopy Light 120V-277V(68W) - Caster Lighting

CM10 LED Canopy Light 120V-277V(68W)

SKU: CM10 Category:

CM10 LED Canopy Light 120V-277V(68W)



       ◆   Die-cast aluminum housing for durability and heat dissipation.

       ◆   Adjustable color temperature and wattage for versatility.

       ◆   Motion seneor (optional).

       ◆   Long lifespan of 50,000 hours at 40°C.



  • INFORMATION

    The LED Canopy ,DLC - CM10 canopy luminaires are energy efficient and budget friendly, perfect for replacing up to 150W HID luminaires while saving up to 70% energy costs. An LED array and prismatic lens create uniform and visually comfortable illumination. CM10 is DLC listed and deliver quick payback!

  • SPECIFICATION

    ITEM WATTAGE    Wattage (Selectable)       CCT (Selectable) Lumens Efficacy    (lm/W)    Surge Protection   Input Voltage CRI THD Operating     Temp. Power Factor            Mounting
    CM10 25W 50%,75%,100% 3K/4K/5K (Y) 3820 153 4KV 120-277V >70 <20% -40~40°C >0.9 Ceiling/Pendant/Conduit
    CM10 45W 50%,75%,100% 3K/4K/5K (Y) 6833 151 4KV 120-277V >70 <20% -40~40°C >0.9 Ceiling/Pendant/Conduit
    CM10 68W 50%,75%,100% 3K/4K/5K (Y) 9932 146 4KV 120-277V >70 <20% -40~40°C >0.9 Ceiling/Pendant/Conduit

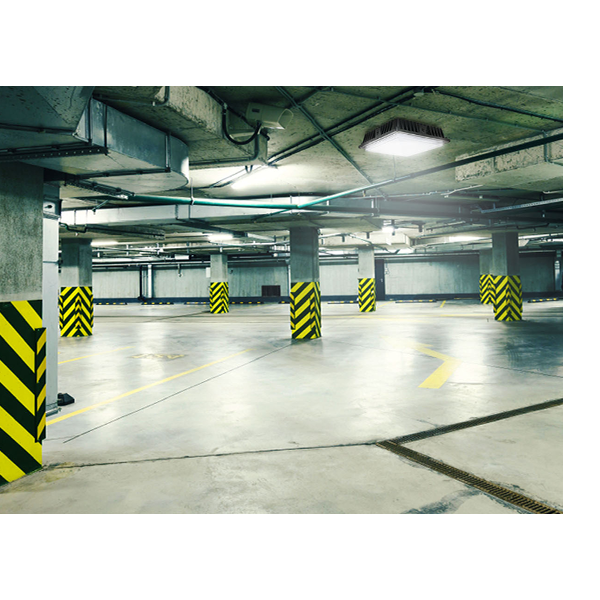

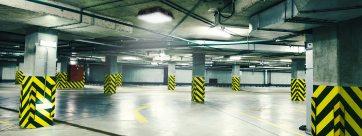

    Application
    ● Parking Garages      ● Warehouses        ● Work Shop
    ● Garages                        ● Storefronts           ● Vestibules

  • DOWNLOADS

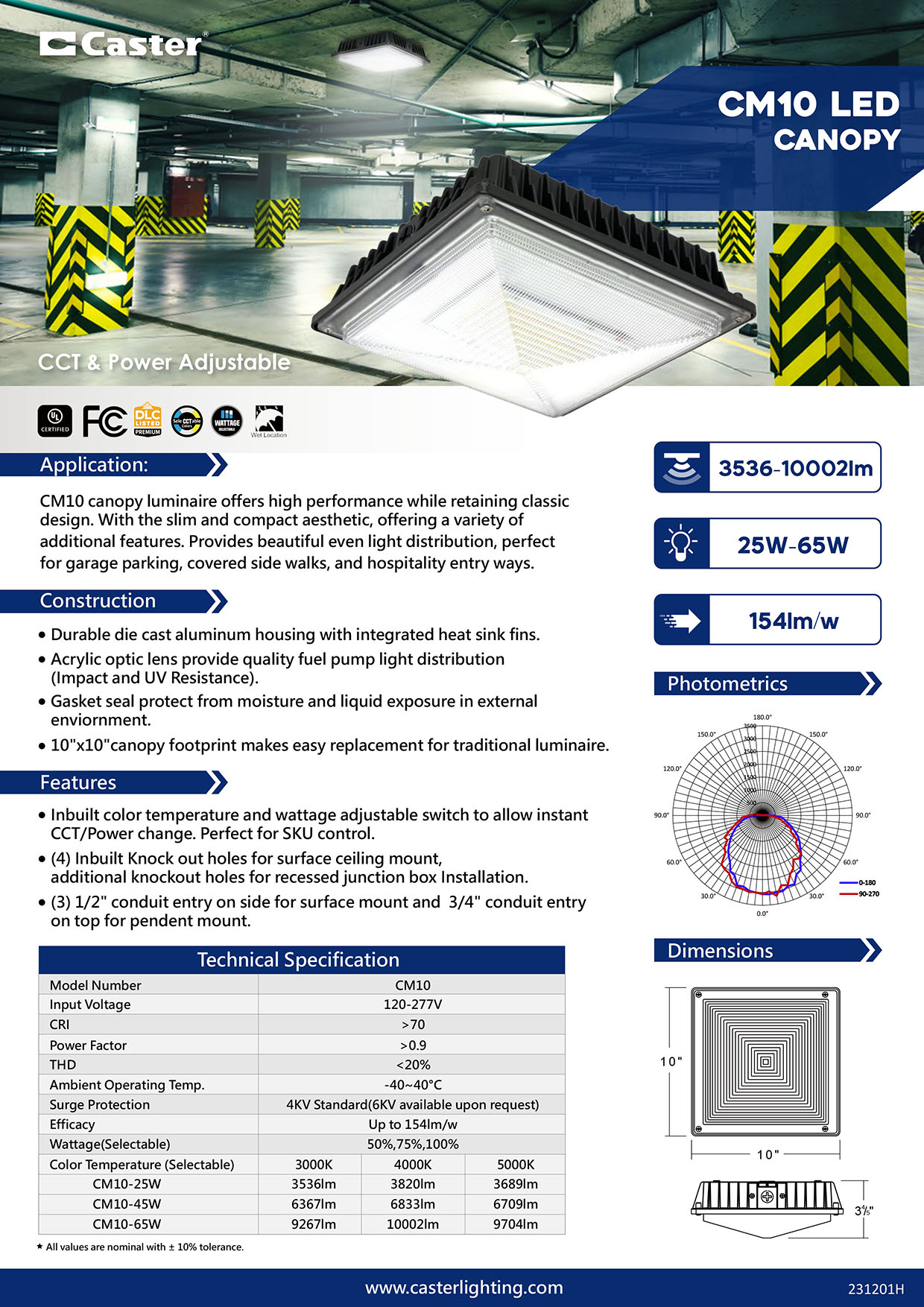

    CM10-Spec Sheet

--> -->
