CM07 LED Canopy Light 120V-277V(54W) - Caster Lighting

CM07 LED Canopy Light 120V-277V(54W)

SKU: CM07 Category:

CM07 LED Canopy Light 120V-277V(54W)



       ◆   Die-cast aluminum housing for durability and heat dissipation.

       ◆   Multiple installation options (conduit/ pendant/ junction box).

       ◆   Long lifespan of 50,000 hours at 40°C.



  • INFORMATION

    Quick to install and pay for itself. the LED Canopy ,DLC - CM07 is an economical retrofit solution for 70-150W HID garage and canopy luminaires, offered in three wattages.

  • SPECIFICATION

    ITEM WATTAGE    Wattage (Selectable)       CCT (Selectable) Lumens Efficacy   (lm/W)    Surge Protection  Input Voltage CRI Dimming Operating     Temp. Power Factor            Mounting
    CM07 27W N/A 3K/4K/5K (N) 3603 133 4KV 120-277V >70 0-10V -40~40°C >0.9 Ceiling/Pendant/Conduit
    CM07 38W N/A 3K/4K/5K (N) 5050 132 4KV 120-277V >70 0-10V -40~40°C >0.9 Ceiling/Pendant/Conduit
    CM07 54W N/A 3K/4K/5K (N) 7126 131 4KV 120-277V >70 0-10V -40~40°C >0.9 Ceiling/Pendant/Conduit

    Application
    ● Parking Garages      ● Warehouses        ● Work Shop
    ● Garages                        ● Storefronts           ● Vestibules



  • DOWNLOADS

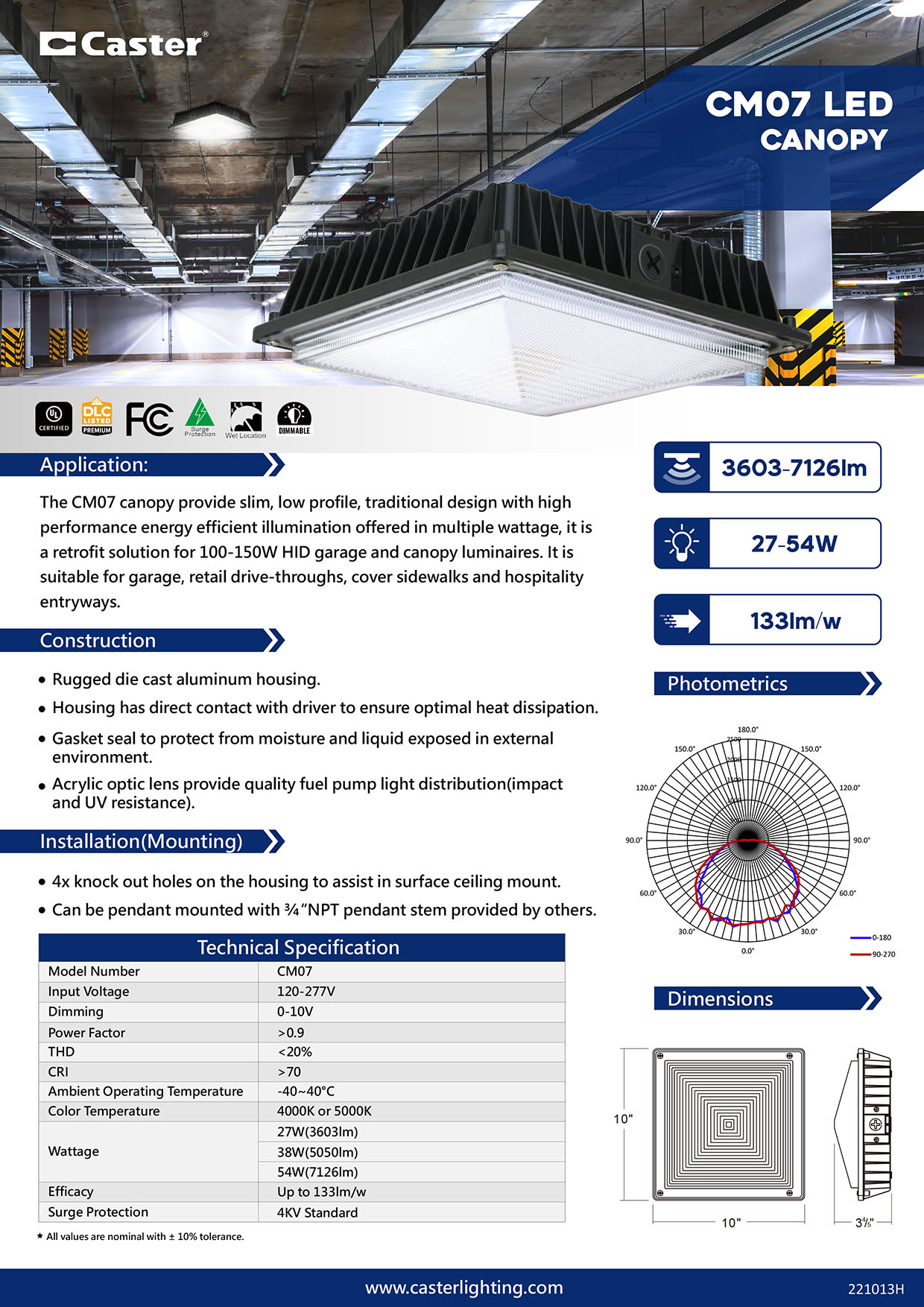

    CM07-Spec Sheet

--> -->
