WP24 LED Wall Pack 120V-277V(38W)

SKU: WP24 Category:

WP24 LED Wall Pack 120V-277V(38W)



       ◆   Die-cast aluminum housing for durability and heat dissipation.

       ◆   Adjustable color temperature and wattage for versatility.

       ◆   Polycarbonate lens provide forward throw light distribution.

       ◆  Long lifespan of 50,000 hours at 40°C.



  • INFORMATION

    This Full cut off wall pack is ideal for commerical wall mounted application where traditional metal halide luminaries are typically used. With choice of three light levels and type III light distribtion for wider coverage, this WP24 is ideal for outdoor application such as building perimeters, driverways and where control of spill light is important.

  • SPECIFICATION

    ITEM WATTAGE    Wattage (Selectable)       CCT (Selectable) Lumens Efficacy  (lm/W)     Surge Protection Power Factor  Input Voltage CRI THD Operating     Temp. Mounting
    WP24 25W 50%,75%,100% 3K/4K/5K (Y) 3302 132 4KV >0.9 120-277V >70 <20% -40~40°C WALL
    WP24 40W 50%,75%,100% 3K/4K/5K (Y) 6046 151 4KV >0.9 120-277V >70 <20% -40~40°C WALL

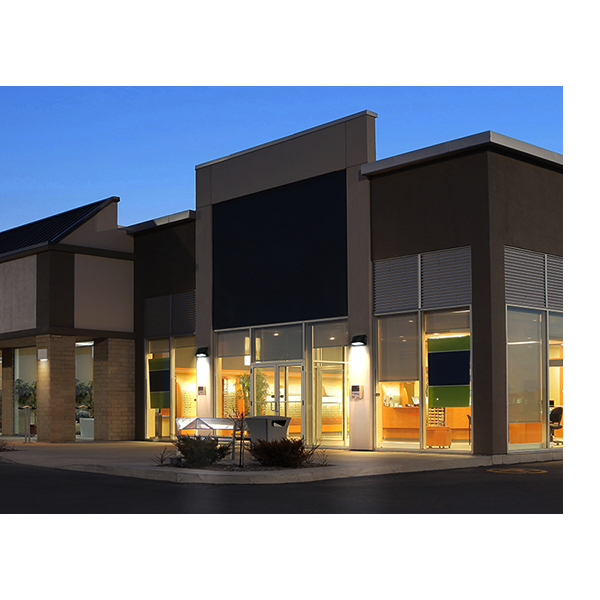

    Application
    ● Commercial Areas        ● Entrances & Doorways     ● Parking Lots & Garages
    ● Industrial Facilities      ● Security Lighting                   ● Pathways & Perimeters

  • DOWNLOADS

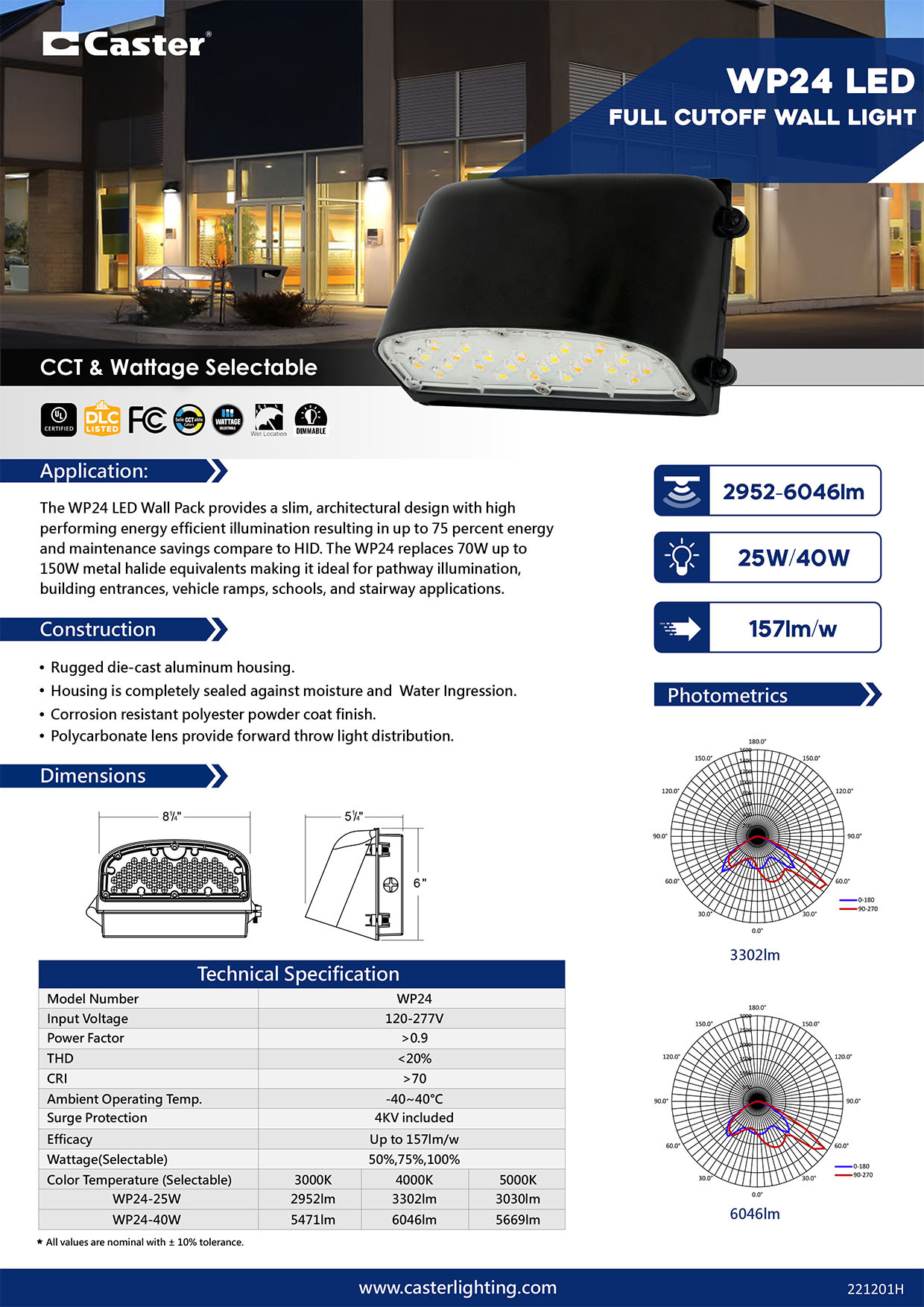

    WP24-Spec Sheet

--> -->
