LED Wall Pack 167W 120V-277V(WP53)
LED Wall Pack 167W 120V-277V(WP53)
Model No: WP53
Control Option:Button Photocell optional
Power Factor (PF):>0.9 Total Harmonic Distortion (THD):<20%
Ambient Operating Temp. range:-30°C~30°C
Surge Protection:4KV(6KV/10KV available)
Lumen efficacy:Up to 137lm/w
Body construction:Die-cast Aluminum
Lens construction:Borosilicate Glass
Mounting Option:1/2″ NPS on sides/knockouts
-
INFORMATION

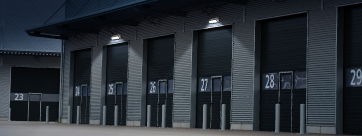

The WP53 provides traditional architectural style with high performance energy efficient illumination. Listed as DLC Premium product back up it have superior quality and make it more attractive choice for contractors when select lighting products for their job. It is ideal for pathway illumination, building entrances, vehicle ramps, schools, tunnels, stairways and loading docks.
-
SPECIFICATION
Model No. Watts Lumens Color Input Voltage CRI Equivalent WP53 136 18173 4000K/5000K 120V-277V 347V-480V
70 400MH 167 22731 400PSMH -
